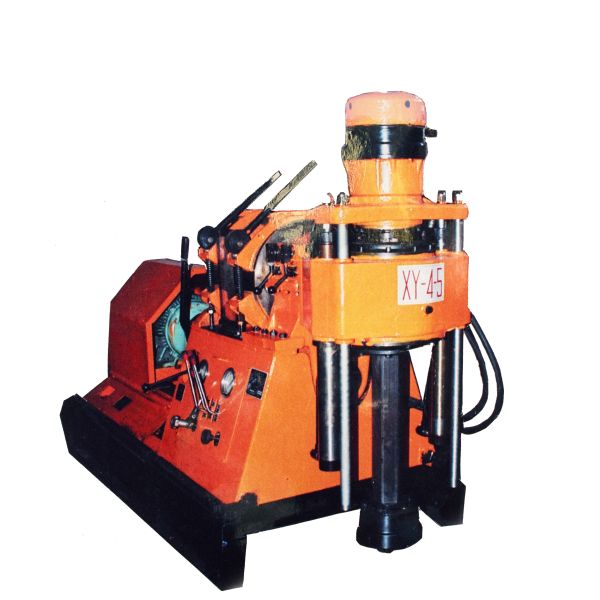

XY-4-5 Spindle Rotatory Engineering Drilling Rig / Micro Piling Machine
Quick Detail:
1. The drill can be mainly in application of foundation piles construction in small diameter for grouting pile holes drilling of high building, port and bridge, etc.
2.Changed different tower,drilling tool and pump, it can be used for water well drilling .
Description:
1. XY-4-5 drilling rig is a construction drilling rig with mechanical transmission and hydraulic feeding system. It is used in middle and small diameter pile drilling for buildings, port, dam, bridge and basic engineering.
2. Changed drill head, it can be used for core drilling rig.
3.Changed different tower,drilling tool and pump, it can be used for water well drilling .
Specifications:
| Hole depth | 200-500m | Rod dia | 300mm |
| Hole depth | 50-100m | Rod dia | 500mm |
Hole depth | 20-50m | Rod dia | 1000mm |
Hole angle(°) | 360° |
| Spindle speed | Forward: 18/34/48/57/71/105/150/218r/min |
| Reverse: 15/47r/min |
| Stroke of spindle | 600mm |
| Max .lifting capacity | 72KN |
| Max. torque of spindle | 12800N.m |
| Max .feeding capacity | 54KN |
| Hoist | Max .lifting capacity
(single line): | 30KN |
| Lifting speed: | 0.82;1.53;2.16;3.13m/s |
| Power | Electric motor: | 37kw,1480rpm |
| Diesel engine | 40kw,2000rpm |
| Retraction device stroke (mm) | 720 |
| Weight | 3000kg |
Applications:
1.Middle and small diameter pile drilling for buildings, port, dam, bridge and basic engineering.
2.Engineering geological exploration.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets
